Industrial Safety Fence Machine Guard fence Panel Robotics Sliding Open

Robotics Sliding Open Style Security Construction Gate/Wire Nature Pressure

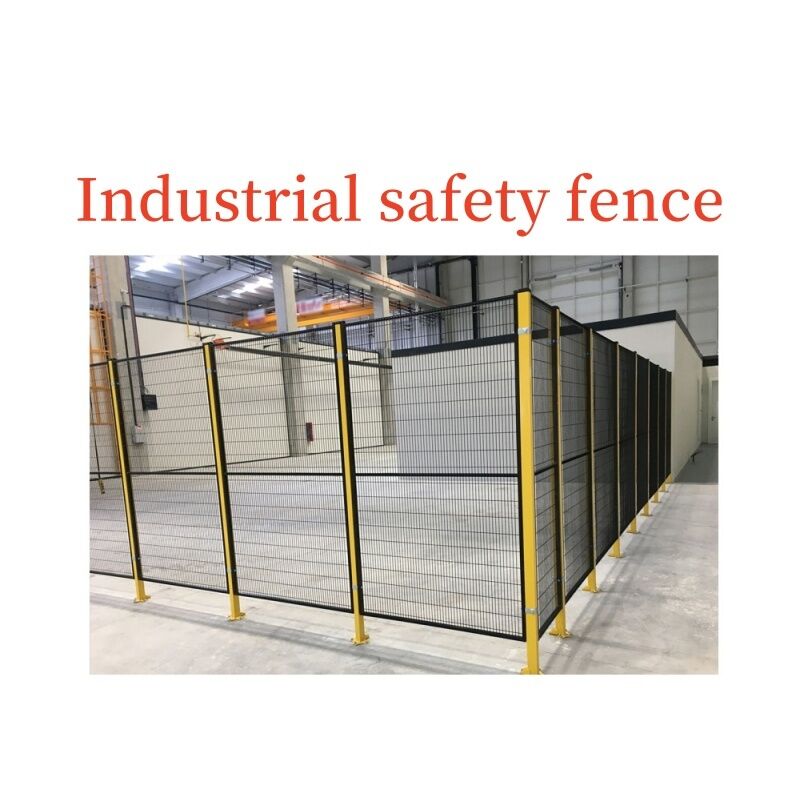

These barriers effectively segregate work areas, preventing unauthorized access and minimizing the risk of accidents. Constructed from durable materials, our isolation fences are both robust and reliable, ensuring long-lasting performance. With easy installation and customizable options, they can be tailored to meet the specific needs of your workshop layout.

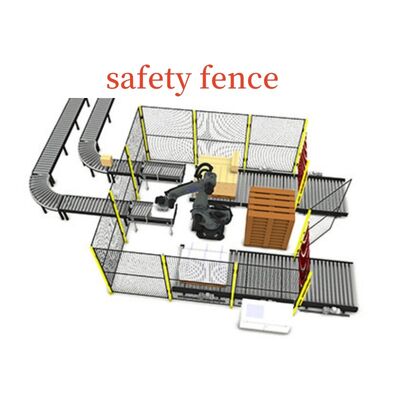

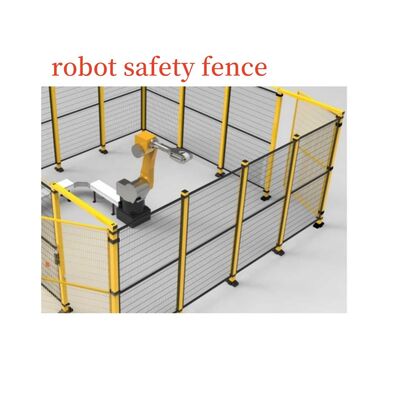

Robot fence, also called robot fence, safety fence, if it is used in the workshop, also known as workshop aluminum profile is olation net, workshop partition, aluminum alloy fence, automatic fence net, etc. Without expansion screws, industrial aluminum profiles are generally used as the guardrail frame, with mesh in the middle, transparent acrylic or aluminum plastic plate, etc.
The grid size and color can be customized. The grid size of the commonly used robot fence or workshop isolation net is 20*100 grid, but also 30•30 grid, 50*50 grid or 40*40 grid. Common grid colors are yellow, grey, black and so on.

Post

Size of fast insertion & fast screw post:
Height: 1200mm/1400mm/2000mm/2200m
Section:60*60mm, 50*50mm
Section:50*50mm*2.0mm





Product Name	Robot fence
Type	LW GUARD FENCING/Equipment Guarding/Safety Robotics Fencing
Material	Imported Polymer Plastics
Maximum load	1.5 Tonne vehicle at 5 km/h
Overall length	600mm-1537mm or Customized size
Height	1800mm or Customized size
Application	Suitable for areas with independent isolation of personnel and materials, as well as high stacking of goods, to protect the safety of personnel and materials.
Advantages	Withstands multiple impacts and returns to its original form
Color	Yellow+ black
Certified	Refer to PAS13 TUV certified
Pipe	Developed by imported polymer plastic, which have strong weather and chemical resistance, not easy to age; natural color with low chemical activity, UV resistance meets ISO4892-3; no corrosion.
Base	Metal, rubber and other materials combined assembly,metal is treat by electrophoresis ,withstand 72 hours exposure to neutral salt spray with no rust .
Ground Connection	Fixed by inverted cone chemical anchor bolt, with dacromet, withstand 1000 hours exposure to neutral salt spray with no rust .
Mesh board and connectors	Made of Q235 through intermediate frequency welding machine, it is not easy to detach and has high tensile strength. In the welding of the frame and mesh, the method of welding the metal wire flat onto the frame is used to prevent scratches caused by human contact with the guardrail. The surface is treated with spray molding and subjected to a neutral salt spray test for 500 hours without rusting.
