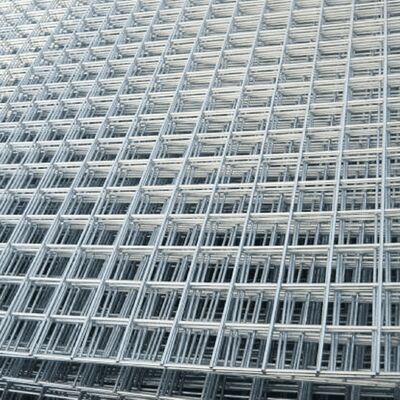

1x1 2x2 Square Hole Galvanised Wire Mesh Panels Iron Wire Mesh
|
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | Welded Mesh Panel | Keyword: | Wire Mesh Panel |
|---|---|---|---|
| Material: | Galvanized Steel/stainless Steel | Colour: | Green/black/customized |
| Wire Gauge: | 1.6mm-12mm | Feature: | Easily Assembled, Anti-Corrosion, Eco Friendly |
| Surface Treatment: | Hot Dipped Galvanzied Or Electro Galvanized | Hole Shape: | Square Or Rectangle |
| Highlight: | 1x1 galvanised wire mesh panels,2x2 galvanised wire mesh panels,1x1 galvanized welded iron wire mesh |
||
1x1 2x2 Square Hole welded mesh panel iron Wire Mesh
Product Description
High-quality welded wire mesh panels manufactured with precision welding technology for superior strength and durability.
Material
Low carbon steel wire Q195/Q235
Processing Method
Electrically welded construction
Applications
- House beams and roofs
- Building boards and walls
- Concrete roads and bridges
- Airfield pavements and highways
- Water dams and road bases
- Various construction projects
Available Types

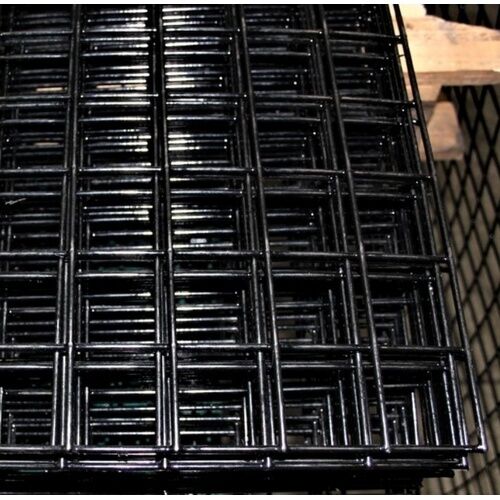

- Black wire welded mesh panel
- Electro galvanized wire before welding
- Electro galvanized after welding
- Hot dipped galvanized before welding
- Hot dipped galvanized after welding
- Stainless steel wire welded panel
Standard Specifications
| Item | Mesh (inch) | Mesh (mm) | Wire Diameter (mm) | Wire Gauge |
|---|---|---|---|---|
| GWMP-01 | 1" x 1" | 25 x 25 | 1.4-4.5 | 17-7 |
| GWMP-02 | 1½" x 1½" | 40 x 40 | 1.6-4.5 | 16-7 |
| GWMP-03 | 2" x 1" | 50 x 25 | 2.0-4.5 | 14-7 |
| GWMP-04 | 2" x 2" | 50 x 50 | 2.0-5.0 | 14-6 |
| GWMP-05 | 3" x 1/2" | 75 x 13 | 1.4-3.0 | 17-10 |
| GWMP-06 | 3" x 1" | 75 x 25 | 1.4-4.5 | 16-7 |
| GWMP-07 | 3" x 2" | 75 x 50 | 2.0-6.0 | 14-4 |
| GWMP-08 | 3" x 3" | 75 x 75 | 2.0-6.0 | 14-4 |
| GWMP-09 | 4" x 2" | 100 x 50 | 2.0-6.0 | 14-4 |
| GWMP-10 | 4" x 4" | 100 x 100 | 2.0-6.0 | 14-4 |
| GWMP-11 | 5" x 5" | 125 x 125 | 2.0-6.0 | 14-4 |
| GWMP-12 | 6" x 3" | 150 x 75 | 2.0-6.0 | 14-4 |
| GWMP-13 | 6" x 6" | 150 x 150 | 2.0-6.0 | 14-4 |
| GWMP-14 | 8" x 8" | 200 x 200 | 2.0-6.0 | 14-4 |
Standard Panel Sizes
2.44x1.22m, 1.8x0.9m, 2.0x1.0m, 2.1x1.2m, 3x1.5m, 4.0x2.0m, 5.8x2.2m, 6.0x2.4m, and other custom sizes available
Customization Options
- Materials: Low-carbon steel, stainless steel, galfan (zinc-aluminum alloy coated)
- Wire diameter: 2.0mm to 8.0mm
- Standard apertures: 25mm x 25mm to 200mm x 200mm
- Panel sizes: Up to 2.4m wide and 6.0m long
- Edge conditions: Trimmed (flush) or untrimmed
- Finishes: Pre-galvanized, hot-dipped galvanized, electro-galvanized, PVC coated, or powder coated
Quality Features
- Firm welding with fusion depth up to 1/3 wire diameter
- Sheared wire ends remain flush and burr-free
- Uniform mesh patterns with flat surface
- Premium surface finishes
- Batch-tested wire diameter and tensile strength
- Rigorous product inspection process
Packaging Options
- Plastic film + Metal pallet
- Moisture resistance paper + Box
- Stretch plastic film + Wooden pallet
- Custom packaging available upon request
Warehouse Storage
Product Samples
Free samples available upon request. Urgent sampling with 48-hour expedited service.
